Glass door fitting

Glass door fitting for floor spring
China's professional glass door and floor spring manufacturer, exporter and supply, all products are sold directly at factory prices, and glass door accessories are wholesale at special prices.

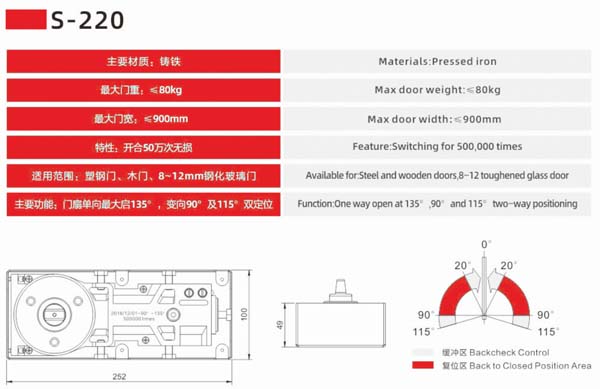

80kg floor spring S-220 for glass door at best price,Suitable for all kinds of steel glass doors, doors with frame, safety automatic switch door control system, load-bearing 80kg

Floor spring manufacturers, floor spring suppliers, glass door accessories, glass door floor springs, steel door floor springs,two-way 90-degree positioning floor springs customized professional manufacturers in China

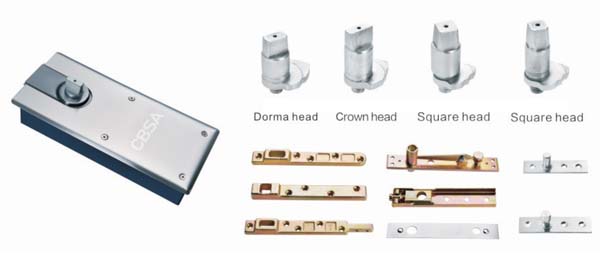

Floor spring,steel door floor springs,80kg floor spring,automatic door closing floor spring，Steel spring, floor spring price，



Technical data:
1,floor spring injected with high quality anti-freezing hydraulic oil,in order
to ensure smooth and flexible operation of floor spring under -35oc
2,Max door opcnning angle 115o
3,The floor spring can provide 90o position function or non-positioning function.
4,There are two speed adjustment valves.
5,Universal design for doors of all matcrials,all with accessories.
6,There are adjustable and non-adjustable floor spring accessories for easy installation and easy adjustment.

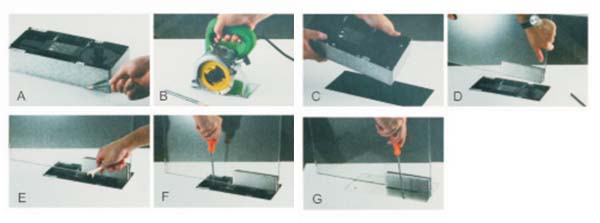

Floor Spring Installation Steps:
A,Draw the line to make the floor spring spin axis center coincide with the patch fitting ratation shaft.
B,According to the instructionsand the physical object digging the hole on the ground,the hole size must be tightly consistent with the cement box.
C,Put the floor spring into the hole.
D,Lift the door leaf installed with the patch fitting,and insert the floor spring cam into the patch fitting rotation shaft hole.
E,Adjust the screws in the three directions of the ground spring to keep the door leaf vertical and the upper and lower axes coincide with each other.
F,Adjust the speed of door closing
G,Put the decoration cover on ths floor spring.

     Inquire Now     WhatsApp:0086 13925936221
